Power to Gas with Heat Coupling
This is an example for power to gas with optional coupling to heat sector (via boiler OR Combined-Heat-and-Power (CHP))
A location has an electric, gas and heat bus. The primary source is wind power, which can be converted to gas. The gas can be stored to convert into electricity or heat (with either a boiler or a CHP).
[1]:
import pypsa
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from pyomo.environ import Constraint
%matplotlib inline
Combined-Heat-and-Power (CHP) parameterisation
This setup follows http://www.ea-energianalyse.dk/reports/student-reports/integration_of_50_percent_wind%20power.pdf pages 35-6 which follows http://www.sciencedirect.com/science/article/pii/030142159390282K
[2]:
#ratio between max heat output and max electric output
nom_r = 1.
#backpressure limit
c_m = 0.75
#marginal loss for each additional generation of heat
c_v = 0.15

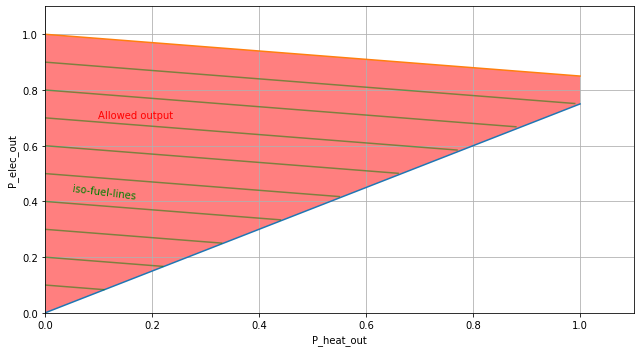

Graph for the case that max heat output equals max electric output
[3]:
fig, ax = plt.subplots(figsize=(9,5))
t = 0.01
ph = np.arange(0,1.0001,t)
ax.plot(ph,c_m*ph)
ax.set_xlabel("P_heat_out")
ax.set_ylabel("P_elec_out")
ax.grid(True)
ax.set_xlim([0,1.1])
ax.set_ylim([0,1.1])
ax.text(0.1, 0.7, "Allowed output", color="r")
ax.plot(ph, 1-c_v*ph)
for i in range(1,10):
k = 0.1*i
x = np.arange(0,k/(c_m+c_v),t)
ax.plot(x,k-c_v*x,color="g",alpha=0.5)
ax.text(0.05, 0.41, "iso-fuel-lines", color="g", rotation=-7)
ax.fill_between(ph, c_m*ph, 1-c_v*ph, facecolor="r", alpha=0.5)
fig.tight_layout()
Optimisation
[4]:
network = pypsa.Network()
network.set_snapshots(pd.date_range("2016-01-01 00:00","2016-01-01 03:00",freq="H"))
network.add("Bus", "0", carrier="AC")
network.add("Bus", "0 gas", carrier="gas")
network.add("Carrier", "wind")
network.add("Carrier", "gas", co2_emissions=0.2)
network.add("GlobalConstraint",
"co2_limit",
sense="<=",
constant=0.)
network.add("Generator",
"wind turbine",
bus="0",
carrier="wind",
p_nom_extendable=True,
p_max_pu=[0.,0.2,0.7,0.4],
capital_cost=1000)
network.add("Load",
"load",
bus="0",
p_set=5.)
network.add("Link",
"P2G",
bus0="0",
bus1="0 gas",
efficiency=0.6,
capital_cost=1000,
p_nom_extendable=True)
network.add("Link",
"generator",
bus0="0 gas",
bus1="0",
efficiency=0.468,
capital_cost=400,
p_nom_extendable=True)
network.add("Store",
"gas depot",
bus="0 gas",
e_cyclic=True,
e_nom_extendable=True)
Add heat sector
[5]:
network.add("Bus", "0 heat", carrier="heat")
network.add("Carrier", "heat")
network.add("Load",
"heat load",
bus="0 heat",
p_set=10.)
network.add("Link",
"boiler",
bus0="0 gas",
bus1="0 heat",
efficiency=0.9,
capital_cost=300,
p_nom_extendable=True)
network.add("Store",
"water tank",
bus="0 heat",
e_cyclic=True,
e_nom_extendable=True)
Add CHP constraints
[6]:
#Guarantees ISO fuel lines, i.e. fuel consumption p_b0 + p_g0 = constant along p_g1 + c_v p_b1 = constant
network.links.at["boiler","efficiency"] = network.links.at["generator","efficiency"]/c_v
def extra_functionality(network,snapshots):
#Guarantees heat output and electric output nominal powers are proportional
network.model.chp_nom = Constraint(rule=lambda model : network.links.at["generator","efficiency"]*nom_r*model.link_p_nom["generator"] == network.links.at["boiler","efficiency"]*model.link_p_nom["boiler"])
#Guarantees c_m p_b1 \leq p_g1
def backpressure(model,snapshot):
return c_m*network.links.at["boiler","efficiency"]*model.link_p["boiler",snapshot] <= network.links.at["generator","efficiency"]*model.link_p["generator",snapshot]
network.model.backpressure = Constraint(list(snapshots),rule=backpressure)
#Guarantees p_g1 +c_v p_b1 \leq p_g1_nom
def top_iso_fuel_line(model,snapshot):
return model.link_p["boiler",snapshot] + model.link_p["generator",snapshot] <= model.link_p_nom["generator"]
network.model.top_iso_fuel_line = Constraint(list(snapshots),rule=top_iso_fuel_line)
[7]:
network.lopf(network.snapshots, extra_functionality=extra_functionality)
network.objective
