Battery Electric Vehicle Charging
In this example a battery electric vehicle (BEV) is driven 100 km in the morning and 100 km in the evening, to simulate commuting, and charged during the day by a solar panel at the driver’s place of work. The size of the panel is computed by the optimisation.
The BEV has a battery of size 100 kWh and an electricity consumption of 0.18 kWh/km.
NB: this example will use units of kW and kWh, unlike the PyPSA defaults
[1]:
import pypsa
import pandas as pd
import matplotlib.pyplot as plt
%matplotlib inline
[2]:
# use 24 hour period for consideration
index = pd.date_range("2016-01-01 00:00","2016-01-01 23:00", freq="H")
# consumption pattern of BEV
bev_usage = pd.Series([0.]*7 + [9.]*2 + [0.]*8 + [9.]*2 + [0.]*5, index)
# solar PV panel generation per unit of capacity
pv_pu = pd.Series([0.]*7 + [0.2,0.4,0.6,0.75,0.85,0.9,0.85,0.75,0.6,0.4,0.2,0.1] + [0.]*5, index)
# availability of charging - i.e. only when parked at office
charger_p_max_pu = pd.Series(0, index=index)
charger_p_max_pu["2016-01-01 09:00":"2016-01-01 16:00"] = 1.
[3]:

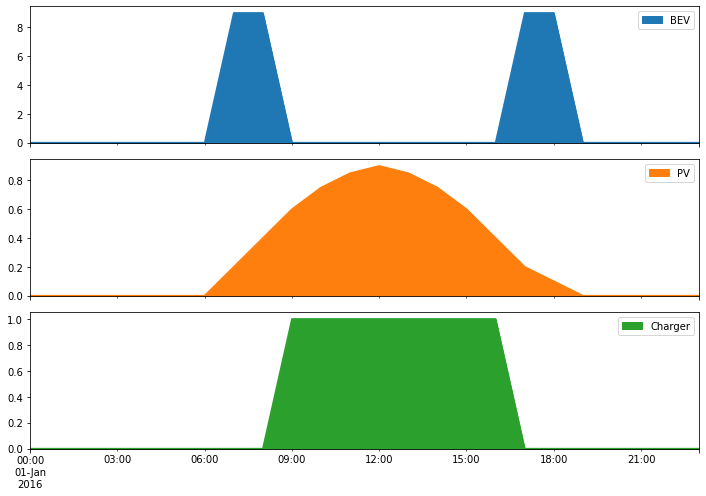

df = pd.concat({'BEV': bev_usage, 'PV': pv_pu, 'Charger': charger_p_max_pu}, axis=1)
df.plot.area(subplots=True, figsize=(10,7))
plt.tight_layout()
Initialize the network
[4]:
network = pypsa.Network()
network.set_snapshots(index)
network.add("Bus",
"place of work",
carrier="AC")
network.add("Bus",
"battery",
carrier="Li-ion")
network.add("Generator",
"PV panel",
bus="place of work",
p_nom_extendable=True,
p_max_pu=pv_pu,
capital_cost=1000.)
network.add("Load",
"driving",
bus="battery",
p_set=bev_usage)
network.add("Link",
"charger",
bus0="place of work",
bus1="battery",
p_nom=120, #super-charger with 120 kW
p_max_pu=charger_p_max_pu,
efficiency=0.9)
network.add("Store",
"battery storage",
bus="battery",
e_cyclic=True,
e_nom=100.)
[5]:
network.lopf()
print("Objective:",network.objective)
